C++ 59896123 UP15-18 BUC5 1/2" SWT 115V

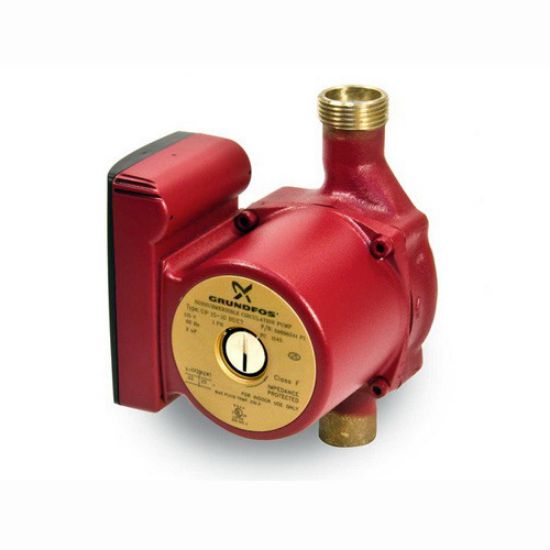

Grundfos UP 15-18 BUC5 Bronze 1-Speed Circulator Pump, 115V at 60 Hz, 1 PH, 1/25 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/4 in.
Width	3-3/16 in.
Height	6-1/2 po
Material	Bronze
AMP	0.55A
Bearing Material	Carbon
Capacitance	8mfd
End Connection 1	Sweat
Environmental Conditions	95% RH Maximum, 104F Ambient Temperature
Fitting Size 1	1/2 in.
Horsepower	1/25 hp
Impeller Material	PES Composite (30% Glass-Filled)
Maximum Feet of Head	14.44 ft.
Maximum Temperature	35.6 - 230F
Number of Poles	2
Phase	1 PH
Port-To-Port Length	6-1/2 in.
Power Rating	60W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Ceramic
Specifications - NEMA	NEMA 2
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
