C++ 59896146 UP15-42B7 3/4" SWT 115V

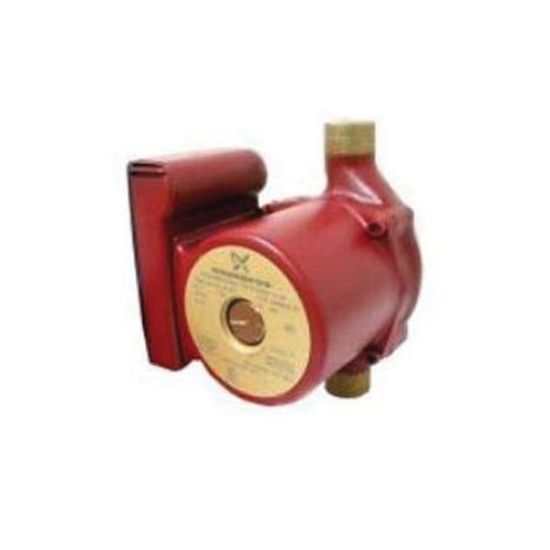

Grundfos UP 15-42 B7 Lead-Free Bronze 1-Speed Small Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.04 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.13 in.
Height	6.38 po
Material	Bronze
AMP	0.74A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Sweat
End Connection 2	Sweat
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	3/4 in.
Fitting Size 2	3/4 in.
Horsepower	0.04 hp
Impeller	PES Composite
Lead Law Compliant	Yes
Maximum Feet of Head	15.09 ft.
Maximum Temperature	36 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	85W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Mounting	In-Line
Pump Stage	10
Shaft Material	Aluminum Oxide Ceramic
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
