C++ 59896226 UP15-10B7 3/4" SWT 115V

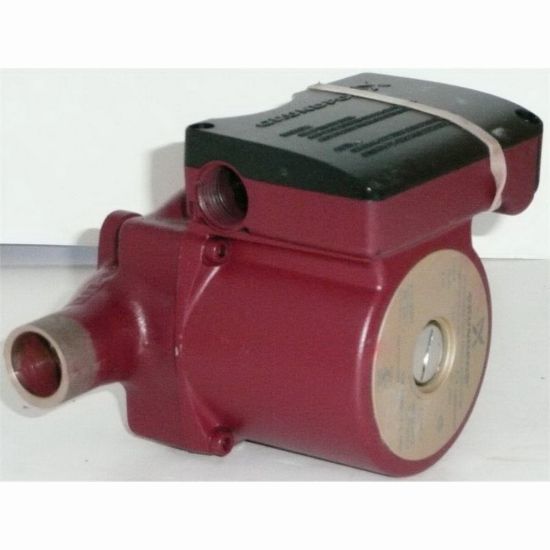

Grundfos UP 15-10 B7 Bronze 1-Speed Circulator Pump, 115V at 60 Hz, 1 PH, 1/25 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/8 in.
Width	3-13/16 in.
Height	6-3/8 po
Material	Bronze
AMP	0.22A
Bearing Material	Carbon
Capacitance	2mfd
End Connection 1	Sweat
Environmental Conditions	95% RH Maximum, 104F Ambient Temperature
Fitting Size 1	3/4 in.
Horsepower	1/25 hp
Impeller Material	PES Composite (30% Glass-Filled)
Maximum Feet of Head	6.234 ft.
Maximum Temperature	35.6 - 219.2F
Number of Poles	2
Phase	1 PH
Port-To-Port Length	6-3/8 in.
Power Rating	25W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Ceramic
Specifications - NEMA	NEMA 2
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
