59896341 UPS15-58FC 115V 3 SPD

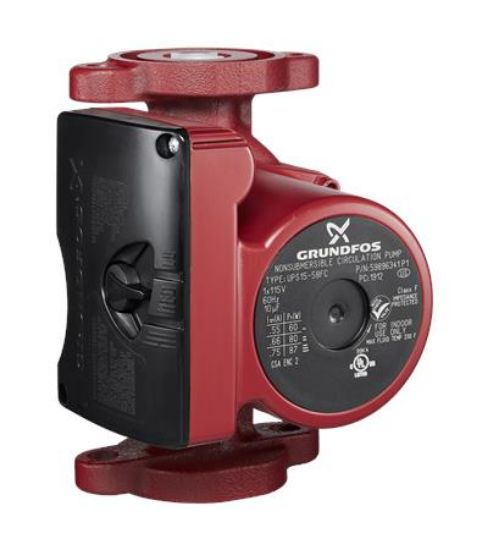

Grundfos UPS 15-58 FC Cast Iron Closed System Small Stator Circulator Pump with Removable Check Valve, 115V, 1 PH, 1/25 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	5-1/4 in.
Height	6-1/2 po
Material	Cast Iron
AMP	0.55A at Speed 1, 0.66A at Speed 2, 0.75A at Speed 3
Bearing Material	Aluminum Oxide Ceramic
Capacitance	10mfd/180V
End Connection 1	2-Bolt Flanged
Horsepower	1/25 hp
Impeller Material	PES Composite
Maximum Feet of Head	58 dm
Maximum Temperature	230F Liquid
Phase	1 PH
Power Rating	60W Speed 1, 80W Speed 2, 87W Speed 3
Pressure - Maximum	145 psi
Pump Motor Type	2-Pole PSC
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
Volts	115V
