59896343 UPS1558FRC 115V 3 SPD

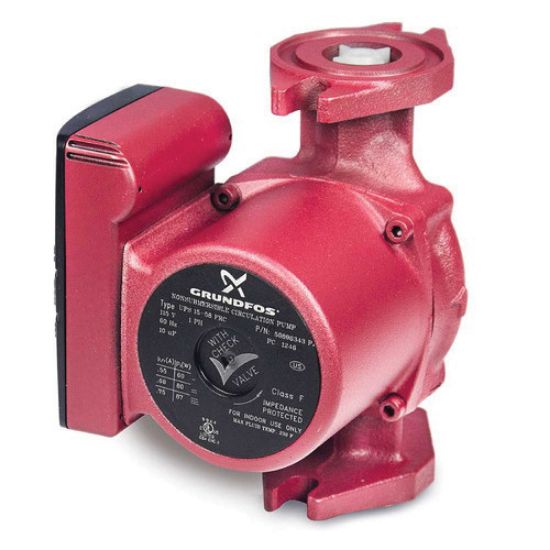

Grundfos UPS 15-58 FRC Cast Iron Closed System Small Stator Circulator Pump with Removable Check Valve, 115V, 1 PH, 1/25 hp
Manufacturer: Grundfos
$0.00
Closed System Small Stator Circulator Pump with Removable Check Valve, UPS Series, Model: UPS 15-58 FRC, 5-1/4 in. Width, 6-1/2 in. Height, Material: Cast Iron, AMP: 0.55A at Speed 1, 0.66A at Speed 2, 0.75A at Speed 3, End Connection 1: 2-Bolt Flanged, Flow Rate: 17 gpm, Horsepower: 1/25 hp, 58 dm Maximum Head, Maximum Temperature: 230F Liquid, Phase: 1 PH, Pressure - Maximum: 145 psi, 2-Pole PSC Pump Motor, Specifications - UL Listed: Yes, 115V Volts, Number of Speeds: 3, Aluminum Oxide Ceramic Shaft, Aluminum Oxide Ceramic Bearing, 60W Speed 1, 80W Speed 2, 87W Speed 3 Power Rating, PES ComposImpeller, Capacitance: 10mfd/180V
Products specifications
products.specs.attributename products.specs.attributevalue
Width 5-1/4 in.
Height 6-1/2 po
Material Cast Iron
AMP 0.55A at Speed 1, 0.66A at Speed 2, 0.75A at Speed 3
Bearing Material Aluminum Oxide Ceramic
Capacitance 10mfd/180V
End Connection 1 2-Bolt Flanged
Horsepower 1/25 hp
Impeller Material PES Composite
Maximum Feet of Head 58 dm
Maximum Temperature 230F Liquid
Phase 1 PH
Power Rating 60W Speed 1, 80W Speed 2, 87W Speed 3
Pressure - Maximum 145 psi
Pump Motor Type 2-Pole PSC
Shaft Material Aluminum Oxide Ceramic
Specifications - UL Listed Yes
Volts 115V
