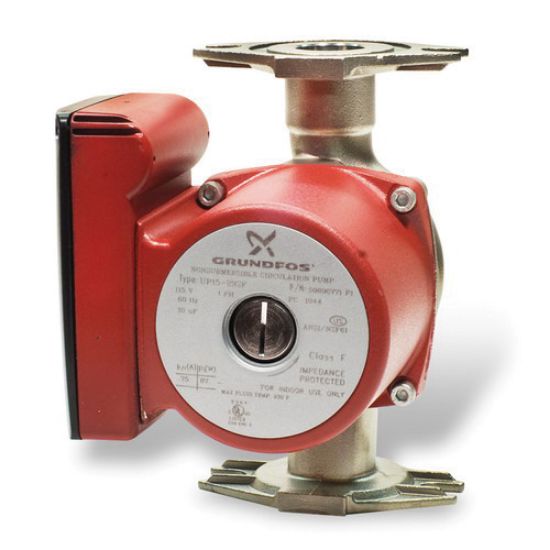

59896771 UP15-29SF 115V SS

Grundfos UP 15-29 SF Stainless Steel 1-Speed Small Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.121 hp
Manufacturer: Grundfos
$0.00
Small Stator Up Circulating Pump, UP Series, Model: UP 15-29 SF, 5-1/2 in. Length, 6-1/2 in. Height, Stainless Steel, AMP: 0.75A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Fitting Size 2: 3/4, 1, 1-1/4, 1-1/2 in., 20.7 gpm US Flow Rate, Horsepower: 0.121 hp, PES ComposImpeller, 9.843 ft. Maximum Feet of Head, 36 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 10 Pump Stage, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 1 Number of Speeds, 87W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 104F Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 10mfd, Insulation Class: F, Port-to-Port Length: 6-1/2 in. Additional Specifications, Material Type: 304 SS
Products specifications
products.specs.attributename products.specs.attributevalue
Length 5-1/2 in.
Height 6-1/2 po
Material Stainless Steel
AMP 0.75A (Speed 3)
Bearing Material Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1 Flanged
End Connection 2 Flanged
Environmental Conditions 104F Ambient Temperature
Fitting Size 1 3/4, 1, 1-1/4, 1-1/2 in.
Fitting Size 2 3/4, 1, 1-1/4, 1-1/2 in.
Horsepower 0.121 hp
Impeller PES Composite
Material Type 304 SS
Maximum Feet of Head 9.843 ft.
Maximum Temperature 36 - 230F
Number of Poles 2
Phase 1 PH
Power Rating 87W
Power Source Hardwired
Pressure - Maximum 145 psi
Pump Stage 10
Shaft Material Aluminum Oxide Ceramic
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
VAC at 60 Hz 115 VAC
