C++ 59896781 UPS15-55SUC 115V 11/4 UN.

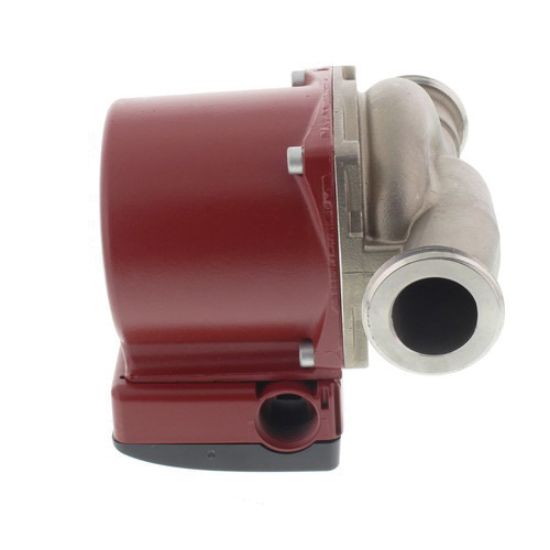

Grundfos UPS 15-55 SUC Stainless Steel 3-Speed Circulator Pump, 115V at 60 Hz, 1 PH, 0.08/0.1/0.12 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/16 in.
Width	3-7/16 in.
Height	5-14/16 po
Material	Stainless Steel
AMP	0.31/0.66/0.69A
Bearing Material	Carbon
Capacitance	10mfd
End Connection 1	NPSM Union
Environmental Conditions	95% RH Maximum, 104F Ambient Temperature
Fitting Size 1	1-1/4 in.
Horsepower	0.08/0.1/0.12 hp
Impeller Material	PES Composite (30% Glass-Filled)
Maximum Feet of Head	18.05 ft.
Maximum Temperature	35.6 - 230F
Number of Poles	2
Phase	1 PH
Port-To-Port Length	5-7/8 in.
Power Rating	56/74/87W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Ceramic
Specifications - ANSI	AISI 304
Specifications - NEMA	NEMA 2
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
