92603114 ALPHA CS 15-55 SU7P/TLC 115 9H

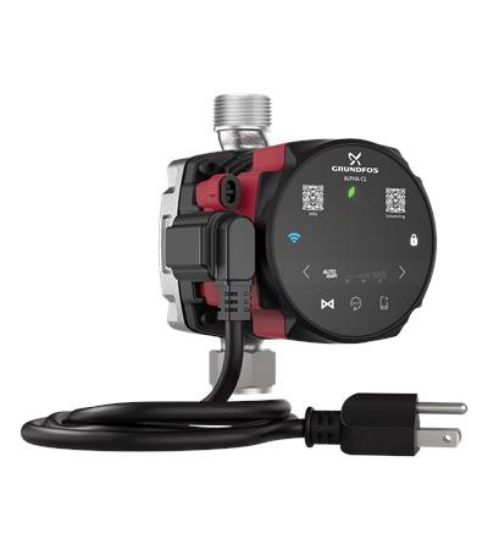

Grundfos 92603114 ALPHA Series 15-55F 115V 1/2 hp Cast Iron Circulator Pump
Manufacturer: Grundfos
$0.00
ALPHA Comfort System is a high-efficiency circulator fitted with a stainless steel housing. It is designed for circulating domestic hot water in systems without dedicated return lines.The AUTOADAPT setting simplifies the commissioning process by eliminating the need to manually select a set point. Additionally, when the valve is closed, AUTOADAPT automatically shuts off the pump, preventing warm water from bleeding over to the cold side.With FLOWSENSE, the ALPHA Comfort System can solve a number of challenges commonly found in domestic hot water recirculation reduces the risk of flow accelerated corrosion in the distribution pipes by reducing the flow velocities while still providing enough flow to kick on the most common tankless boilers.The ALPHA Comfort System also helps reduce sudden increases in shower temperature sometimes seen in systems without a dedicated recirculation line. It will slowly increase the flow upon startup giving enough time for the shower valve to react
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Circulator Pumps
AMP 0.71
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in.
Flow Rate 8.36 gpm
Height 7-1/2 in.
Length 5-59/100 in.
Material Stainless Steel
Maximum Feet of Head 18.05 ft
Maximum Temperature 203
Minimum Temperature 36
Pressure - Maximum 174.92 psi
Pump Phase Single Phase
Specifications - NSF Certified No
Specifications - UL Listed Yes
Style Name ALPHA CS 15-55 SU7P/TLC
Volts 115V
Watts 38 W
Weight 5.25 lb
Origin Denmark
Phase Single Phase
