93094713 COMFORT 10-16 TDT BU/LC

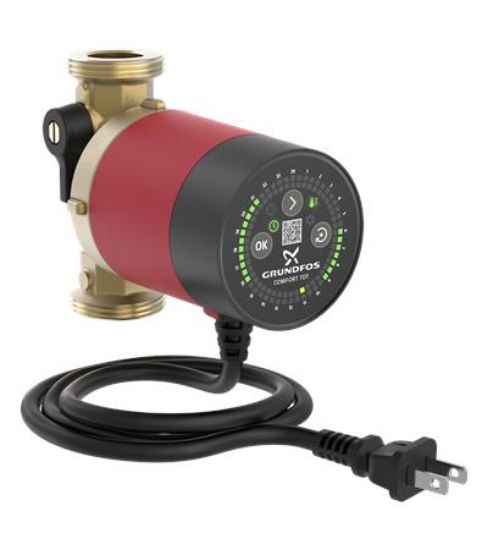

Grundfos 93094713 Comfort 10-16 TDT BU/LC Recirculation Pump with Digital Timer
Manufacturer: Grundfos
$0.00
Grundfos Comfort 10-16 TDT BU/LC pumps are efficient circulators designed for hot-water recirculation in residential buildings with a dedicated return line. The pumps are compatible with all types of water heater tanks, tankless systems, solar and heat pumps regardless of whether the system has mixing or tampering valves installed.The hydraulic performance of COMFORT makes them an easy choice for small and middle-size private homes. The pump parts exposed to contact with water are made of brass, stainless steel, and composite materials to prevent corrosion which is crucial for hot-water recirculation. The design of the impeller allows COMFORT to be used with water of any hardness. The built-in dry-running protection prevents pump failure if the system runs out of water. Thanks to a modern permanent magnet motor, COMFORT runs silently and consumes no more than 7 Watts. The COMFORT range offers variants with smart control modes that optimize operating periods to reduce system heat loss
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Circulator Pumps
AMP 0.1
End Connection NPSM
Flow Rate 1.45 gpm
Height 4 in.
Length 4-33/100 in.
Material Brass
Maximum Feet of Head 5.25 ft
Maximum Temperature 180
Minimum Temperature 36
Pressure - Maximum 145.04 psi
Pump Phase Single Phase
Specifications - CSA Certified Yes
Specifications - NSF Certified No
Specifications - UL Listed Yes
Style Name Comfort 10-16 TDT BU/LC
Volts 115/230V
Watts 6 W
Weight 3.40 lb
Origin Germany
Phase Single Phase
