95906632 UPS26-150 SF 115V 3SPD SS

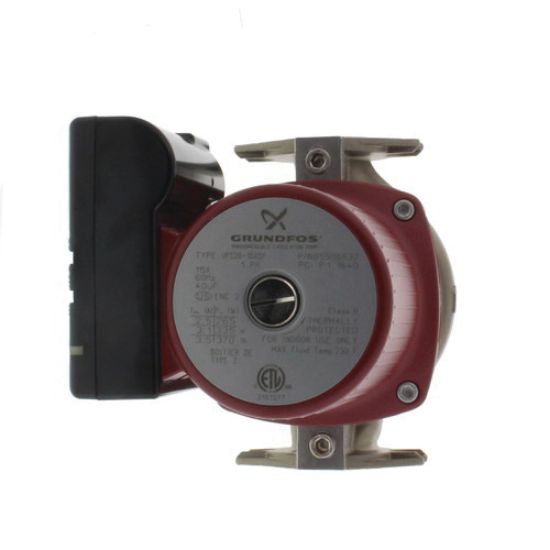

Grundfos SuperBrute XL UPS 26-150 SF Stainless Steel 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

SuperBrute XL Large Stator Up Circulating Pump, UP Series, Model: UPS 26-150 SF, 7.13 in. Length, 6-1/2 in. Height, Stainless Steel, AMP: 2.5A (Speed 1), 3.1A (Speed 2), 3.5A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Fitting Size 2: 3/4, 1, 1-1/4, 1-1/2 in., 53 gpm Flow Rate, Horsepower: 1/2 hp, PES ComposImpeller, 15.27 ft. Maximum Feet of Head, 36 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 10 Pump Stage, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, 115 VAC VAC at 60 Hz, 3 Number of Speeds, 370W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 40C Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 40mfd, Insulation Class: H, Port-to-Port Length: 165mm Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.13 in.
Height	6-1/2 po
Material	Stainless Steel
AMP	2.5A (Speed 1), 3.1A (Speed 2), 3.5A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Fitting Size 2	3/4, 1, 1-1/4, 1-1/2 in.
Horsepower	1/2 hp
Impeller	PES Composite
Maximum Feet of Head	15.27 ft.
Maximum Temperature	36 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	370W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Stage	10
Shaft Material	Aluminum Oxide Ceramic
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
VAC at 60 Hz	115 VAC
