95906633 UPS26-150 SF 208-230V 3SPD SS

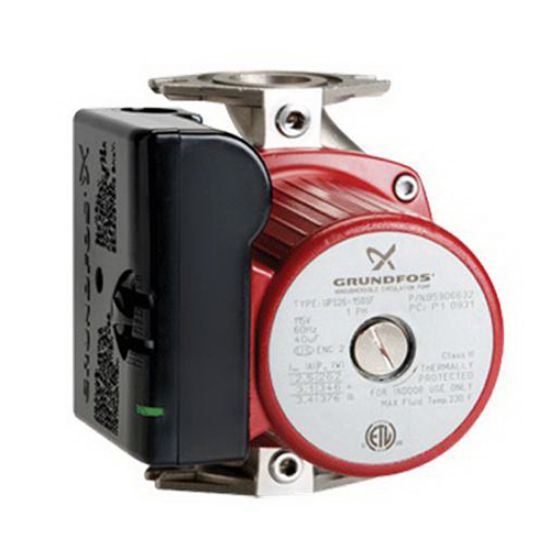

Grundfos SuperBrute XL UPS 26-150 SF Stainless Steel 3-Speed Circulator Pump, 230V at 60 Hz, 1 PH, 0.33 hp

Manufacturer: Grundfos

$0.00

Qty:

SuperBrute XL Circulator Pump, Model: UPS 26-150 SF, 7-1/8 in. Length, 3-7/8 in. Width, 6-1/2 in. Height, Stainless Steel, AMP: 1.2/1.5/1.7A, End Connection 1: 2-Bolt Flanged, 52 gpm Flow Rate, Horsepower: 0.33 hp, 45.28 ft. Maximum Feet of Head, 32 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, NEMA 2 Specifications - NEMA, 230V VAC at 60 Hz, 3 Number of Speeds, 265/335/370W Power Rating, PES Compos(30% Glass-Filled) Impeller Material, Ceramic Shaft Material, Carbon Bearing Material, 95% RH Maximum, 104F Ambient Temperature Environmental Conditions

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7-1/8 in.
Width	3-7/8 in.
Height	6-1/2 po
Material	Stainless Steel
AMP	1.2/1.5/1.7A
Bearing Material	Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 104F Ambient Temperature
Horsepower	0.33 hp
Impeller Material	PES Composite (30% Glass-Filled)
Maximum Feet of Head	45.28 ft.
Maximum Temperature	32 - 230F
Phase	1 PH
Power Rating	265/335/370W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Ceramic
Specifications - NEMA	NEMA 2
VAC at 60 Hz	230V
