95906637 UPS43-100 F 208-230V 3 SPD

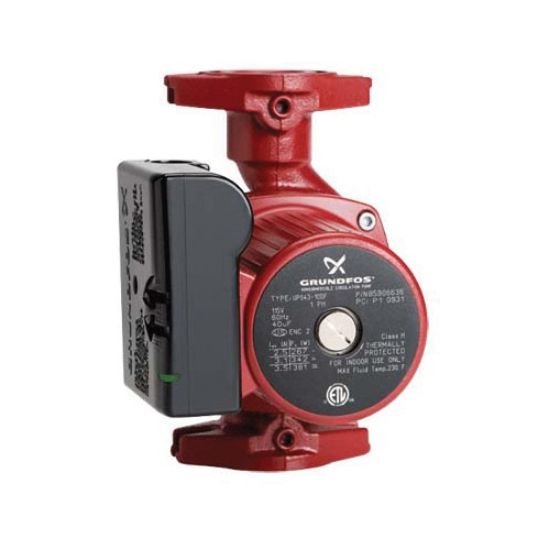

Grundfos SuperBrute XL UPS 43-100 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 230 VAC at 60Hz, 1 PH, 1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

SuperBrute XL Large Stator Up Circulating Pump, UP Series, Model: UPS 43-100 F, 6.69 in. Length, 8-1/2 in. Height, Cast Iron, AMP: 1.2A (Speed 1), 1.5A (Speed 2), 1.7A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., 65 gpm Flow Rate, Horsepower: 1/2 hp, PES ComposImpeller, 30.8 ft. Maximum Feet of Head, 36 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 10 Pump Stage, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, 230 VAC VAC at 60 Hz, 3 Number of Speeds, 370W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 40C Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 10mfd, Insulation Class: H, Port-to-Port Length: 215mm Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.69 in.
Height	8-1/2 po
Material	Cast Iron
AMP	1.2A (Speed 1), 1.5A (Speed 2), 1.7A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Horsepower	1/2 hp
Impeller	PES Composite
Maximum Feet of Head	30.8 ft.
Maximum Temperature	36 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	370W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Stage	10
Shaft Material	Aluminum Oxide Ceramic
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
VAC at 60 Hz	230 VAC
