95906638 UPS43-100F SS 115V 3SPD

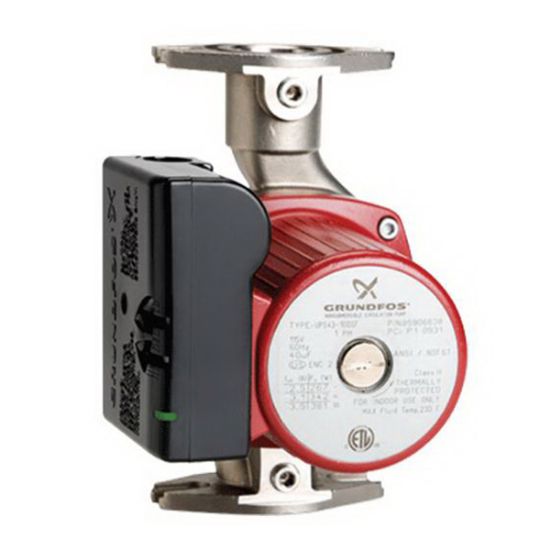

Grundfos SuperBrute XL UPS 43-100 SF Stainless Steel 3-Speed Circulator Pump, 115V at 60 Hz, 1 PH, 0.33 hp

Manufacturer: Grundfos

$0.00

Qty:

SuperBrute XL Circulator Pump, Model: UPS 43-100 SF, 7-3/8 in. Length, 4-1/2 in. Width, 8-1/2 in. Height, Stainless Steel, AMP: 2.5/3.1/3.5A, End Connection 1: 2-Bolt Flanged, 65 gpm Flow Rate, Horsepower: 0.33 hp, 30.84 ft. Maximum Feet of Head, 32 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, NEMA 2 Specifications - NEMA, 115V VAC at 60 Hz, 3 Number of Speeds, 265/335/370W Power Rating, PES Compos(30% Glass-Filled) Impeller Material, Ceramic Shaft Material, Carbon Bearing Material, 95% RH Maximum, 104F Ambient Temperature Environmental Conditions

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7-3/8 in.
Width	4-1/2 in.
Height	8-1/2 po
Material	Stainless Steel
AMP	2.5/3.1/3.5A
Bearing Material	Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 104F Ambient Temperature
Horsepower	0.33 hp
Impeller Material	PES Composite (30% Glass-Filled)
Maximum Feet of Head	30.84 ft.
Maximum Temperature	32 - 230F
Phase	1 PH
Power Rating	265/335/370W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Ceramic
Specifications - NEMA	NEMA 2
VAC at 60 Hz	115V
