96402694 UPS32-40/4 115V

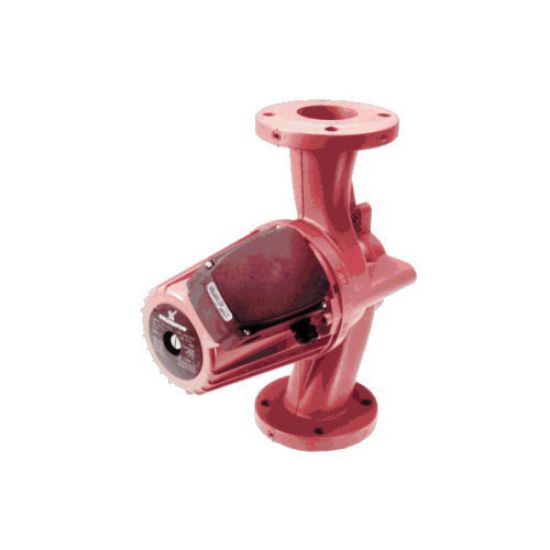

Grundfos UPS 32-40 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.33 hp

Manufacturer: Grundfos

$0.00

Qty:

Large Stator Up Circulating Pump, UP 200 Series, Model: UPS 32-40 F, 12.24 in. Length, 11 in. Height, Cast Iron, AMP: 0.95A (Speed 1), 1.04A ( Speed 2), 1.08A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 32mm, Fitting Size 2: 32mm, 9 - 52 gpm Flow Rate, Horsepower: 0.33 hp, Stainless Steel Impeller, 13.12 ft. Maximum Feet of Head, 32 - 248F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, In-Line Pump Mounting, 1750 RPM, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 3 Number of Speeds, 120W Power Rating, Stainless Steel Shaft Material, Tungsten Carbide Bearing Material, 40C Ambient Temperature Environmental Conditions, Number of Poles: 4, Capacitor: 16mfd, Insulation Class: F, Port-to-Port Length: 279mm Additional Specifications, Material Type: 304 SS

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.24 in.
Height	11 po
Material	Cast Iron
AMP	0.95A (Speed 1), 1.04A ( Speed 2), 1.08A (Speed 3)
Bearing Material	Tungsten Carbide
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	32mm
Fitting Size 2	32mm
Horsepower	0.33 hp
Impeller	Stainless Steel
Material Type	304 SS
Maximum Feet of Head	13.12 ft.
Maximum Temperature	32 - 248F
Number of Poles	4
Phase	1 PH
Power Rating	120W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Mounting	In-Line
RPM	1750 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
