96402708 UPS 32-80/2 115V 3SPD

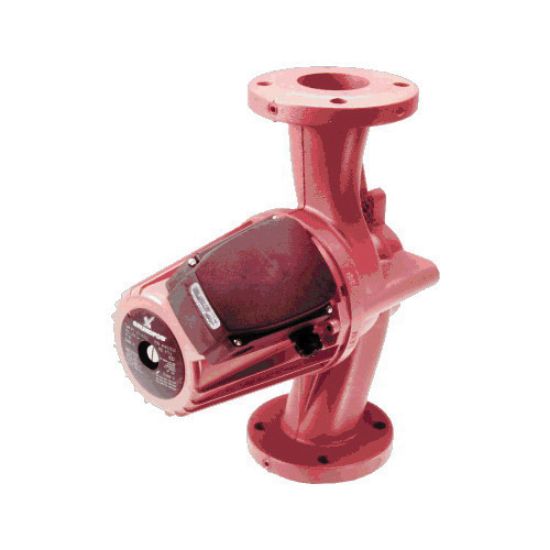

Grundfos UPS 32-80 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 1/2 hp
Manufacturer: Grundfos
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 12.12 in.
Height 11 po
Material Cast Iron
AMP 2.5A (Speed 1 and 2), 2.66A (Speed 3)
Bearing Material Tungsten Carbide
End Connection 1 Flanged
End Connection 2 Flanged
Environmental Conditions 40C Ambient Temperature
Fitting Size 1 32mm
Fitting Size 2 32mm
Horsepower 1/2 hp
Impeller Stainless Steel
Material Type 304 SS
Maximum Feet of Head 26.24 ft.
Maximum Temperature 32 - 248F
Number of Poles 2
Phase 1 PH
Power Rating 280W
Power Source Hardwired
Pressure - Maximum 145 psi
RPM 3450 RPM
Shaft Material Stainless Steel
Specifications - UL Listed Yes
VAC at 60 Hz 115 VAC
