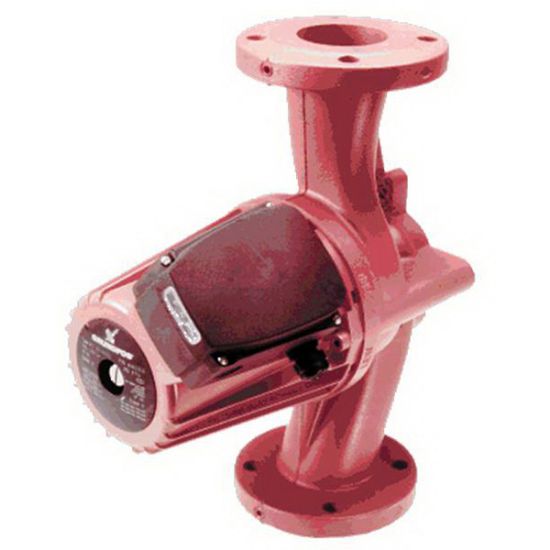

UPS 32-80/2 1/2HP 230V 1PH IB CIRC PUMP

Grundfos VersaFlo UPS 32-80 F Cast Iron 3-Speed Circulator Pump, 230V at 60 Hz, 1 PH, 1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11-3/4 in.
Width	6 in.
Height	11 in.
Material	Cast Iron
AMP	1.26/1.26/1.34A
Bearing Material	Ceramic/Carbon
Capacitance	8mfd
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	1-1/4 in.
Horsepower	1/2 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	26.25 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	1 PH
Port-To-Port Length	11 in.
Power Rating	250/260/280W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
RPM	3281/3400/3495 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	230V
