96402710 UPS32-80/2 208/230V 3PHASE

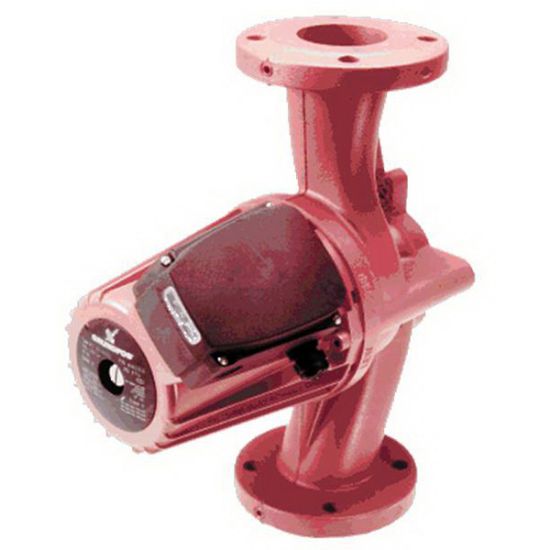

Grundfos VersaFlo UPS 32-80 F Cast Iron 3-Speed Circulator Pump, 208 - 230V at 60 Hz, 3 PH, 1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 32-80 F, 11-3/4 in. Length, 6 in. Width, 11 in. Height, Cast Iron, AMP: 0.58/0.72/1.1A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 1-1/4 in., 9 - 67 gpm Flow Rate, Horsepower: 1/2 hp, 26.25 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3194/3269/3495 RPM, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 208 - 230V VAC at 60 Hz, 3 Number of Speeds, 195/235/280W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 11 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11-3/4 in.
Width	6 in.
Height	11 in.
Material	Cast Iron
AMP	0.58/0.72/1.1A
Bearing Material	Ceramic/Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	1-1/4 in.
Horsepower	1/2 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	26.25 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	11 in.
Power Rating	195/235/280W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3194/3269/3495 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	208 - 230V
