96402730 UPS 32-160/2 115V 3 SPD

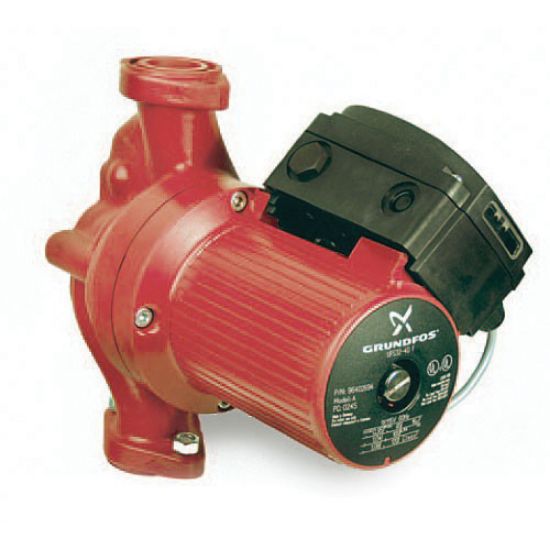

Grundfos UPS 32-160 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.16 in.
Height	13-1/2 po
Material	Cast Iron
AMP	5.5A (Speed 1), 5.8A (Speed 2 and 3)
Bearing Material	Tungsten Carbide
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	32mm
Fitting Size 2	32mm
Horsepower	3/4 hp
Impeller	Stainless Steel
Material Type	304 SS
Maximum Feet of Head	52.5 ft.
Maximum Temperature	32 - 248F
Number of Poles	2
Phase	1 PH
Power Rating	625W
Power Source	Hardwired
Pressure - Maximum	145 psi
RPM	3450 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
