96402741 UPS32-160/2 208/230V BRZ 3PHASE

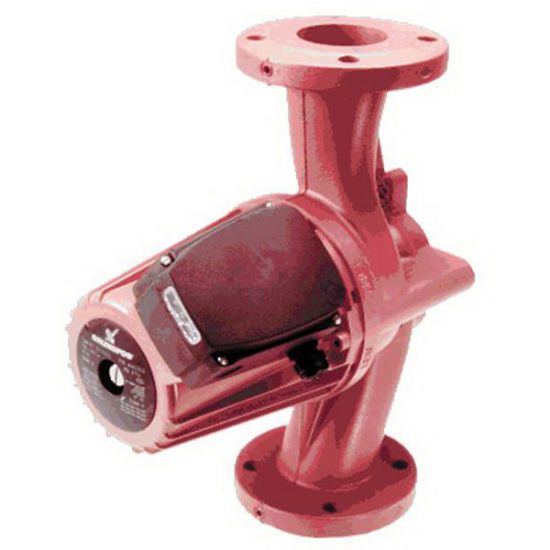

Grundfos VersaFlo UPS 32-160 F B Bronze 3-Speed Circulator Pump, 208 - 230V at 60 Hz, 3 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 32-160 F B, 12-1/16 in. Length, 6 in. Width, 13-1/2 in. Height, Bronze, AMP: 1.12/1.25/1.96A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 1-1/2 in., 9 - 76 gpm Flow Rate, Horsepower: 3/4 hp, 52.5 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3201/3292/3487 RPM, Specifications - UL Listed: Yes, 208 - 230V VAC at 60 Hz, 3 Number of Speeds, 380/430/600W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 13-1/2 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-1/16 in.
Width	6 in.
Height	13-1/2 po
Material	Bronze
AMP	1.12/1.25/1.96A
Bearing Material	Ceramic/Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	1-1/2 in.
Horsepower	3/4 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	52.5 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	13-1/2 in.
Power Rating	380/430/600W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3201/3292/3487 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	208 - 230V
