96402743 UPS32-160/2 575V BRZ 3 PHASE

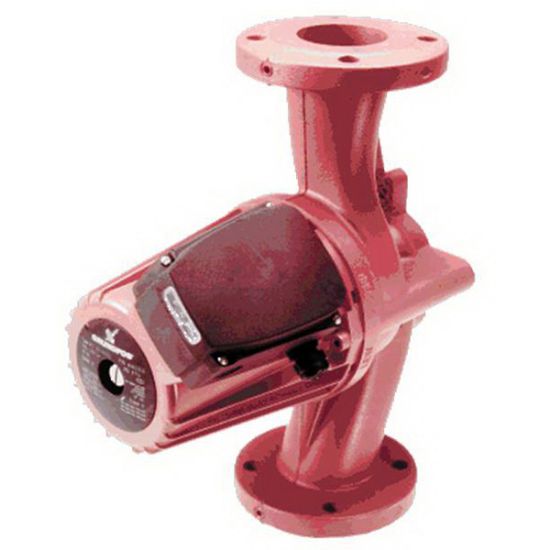

Grundfos VersaFlo UPS 32-160 F B Bronze 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 3/4 hp
VersaFlo Circulator Pump, 200 Series, Model: UPS 32-160 F B, 12-1/16 in. Length, 6 in. Width, 13-1/2 in. Height, Bronze, AMP: 0.5/0.78A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 1-1/2 in., 9 - 76 gpm Flow Rate, Horsepower: 3/4 hp, 52.5 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3292/3487 RPM, Specifications - UL Listed: Yes, 575V VAC at 60 Hz, 2 Number of Speeds, 430/600W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 13-1/2 in. Port-To-Port Length
