Picture of 96402762 UPS 40-80/2 115V 3SPD

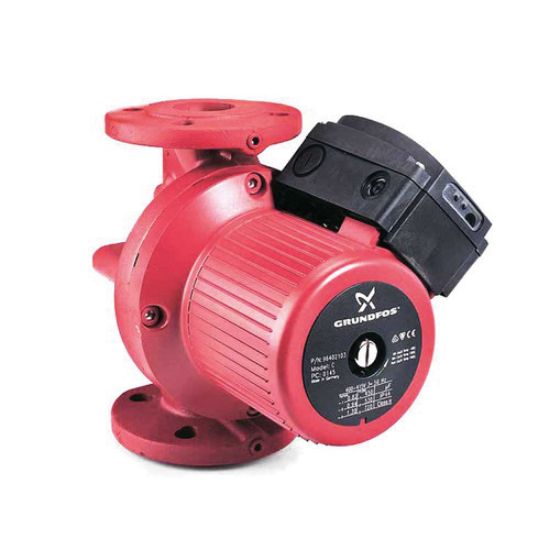

96402762 UPS 40-80/2 115V 3SPD

Grundfos 96402762 3-Speed 115V 3/4 hp Hardwired Cast Iron Large Stator Single Phase Circulator Pump, 60Hz
Manufacturer: Grundfos
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 4.45
Brand/Model Compatibility UP43 Flange Mounted Pumps
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Fitting Size 1 1-1/2 in.
Fitting Size 2 1-1/2 in.
Fitting Sizes 1-1/2 in. x 1-1/2 in.
Flow Rate 105 gpm
Height 13-1/2 in.
Horsepower 3/4 hp
Impeller Stainless Steel
Length 11-15/16 in.
Material Cast Iron
Material Type 304 SS
Maximum Feet of Head 30 ft.
Maximum Temperature 248
Minimum Temperature 14
Power Source Hardwired
Pressure - Maximum 145 psi
RPM 3455
Specifications - ASTM ASTM B-35;ASTM B-40
Specifications - UL Listed Yes
Volts 115V
Watts 480 W
Product Type Circulator Pumps
Pump Mounting In-Line
Phase Single Phase
