96402783 UPS40-160/2 230V

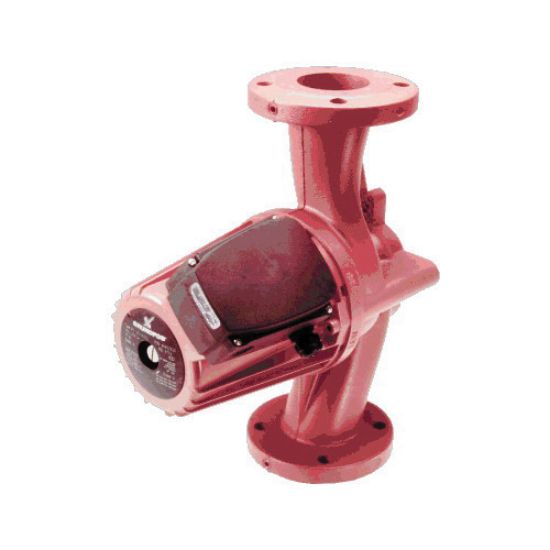

Grundfos UPS 40-160 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 230 VAC at 60Hz, 1 PH, 3/4 hp
Manufacturer: Grundfos
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 11.69 in.
Height 11-1/2 po
Material Cast Iron
AMP 3.45A (Speed 1), 3.75A (Speed 2), 4.2A (Speed 3)
Bearing Material Tungsten Carbide
End Connection 1 Flanged
End Connection 2 Flanged
Environmental Conditions 40C Ambient Temperature
Fitting Size 1 40mm
Fitting Size 2 40mm
Horsepower 3/4 hp
Impeller Stainless Steel
Material Type 304 SS
Maximum Feet of Head 52.5 ft.
Maximum Temperature 32 - 248F
Number of Poles 2
Phase 1 PH
Power Rating 890W
Power Source Hardwired
Pressure - Maximum 145 psi
RPM 3450 RPM
Shaft Material Stainless Steel
Specifications - UL Listed Yes
VAC at 60 Hz 230 VAC
