96402784 UPS 40-160/2 208/230V 3PH 3SPD

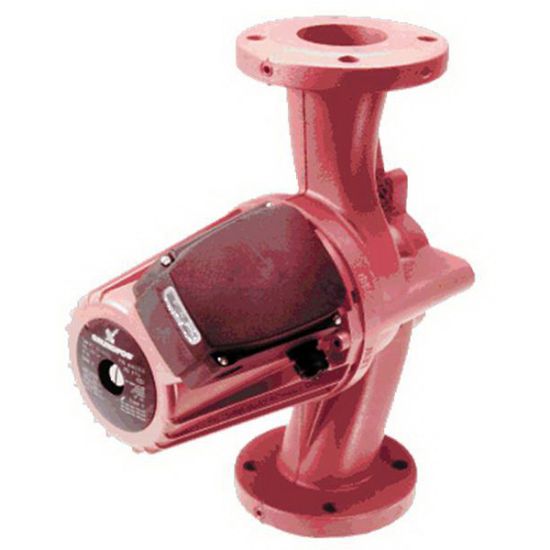

Grundfos VersaFlo UPS 40-160 F Cast Iron 3-Speed Circulator Pump, 208 - 230V at 60 Hz, 3 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11-1/4 in.
Width	7-7/8 in.
Height	11.49 in.
Material	Cast Iron
AMP	1.55/1.75/2.5A
Bearing Material	Ceramic/Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	1-1/2 in.
Horsepower	3/4 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	52.5 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	11-1/2 in.
Power Rating	500/570/800W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3055/3202/3463 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	208 - 230V
