96402791 UPS40-160/2 575V BRZ 3PHASE

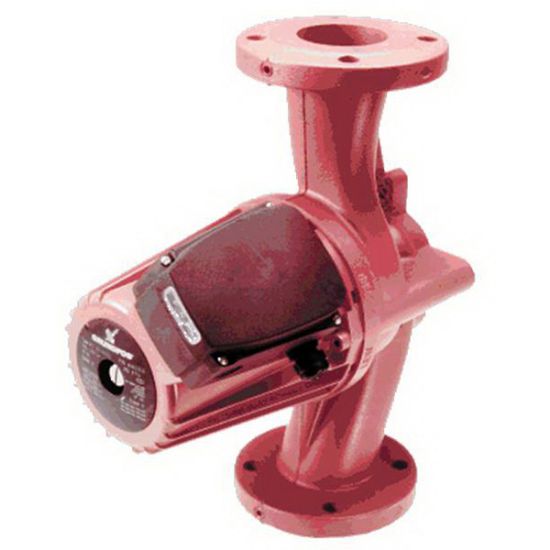

Grundfos VersaFlo UPS 40-160 F B Bronze 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 40-160 F B, 11-5/16 in. Length, 7-7/8 in. Width, 11-1/2 in. Height, Bronze, AMP: 0.7/1A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 1-1/2 in., 13 - 110 gpm Flow Rate, Horsepower: 3/4 hp, 52.5 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3202/3463 RPM, Specifications - UL Listed: Yes, 575V VAC at 60 Hz, 2 Number of Speeds, 570/800W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 11-1/2 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11-5/16 in.
Width	7-7/8 in.
Height	11-1/2 in.
Material	Bronze
AMP	0.7/1A
Bearing Material	Ceramic/Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	1-1/2 in.
Horsepower	3/4 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	52.5 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	11-1/2 in.
Power Rating	570/800W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3202/3463 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	575V
