96402843 UPS50-80/2 115V BRZ

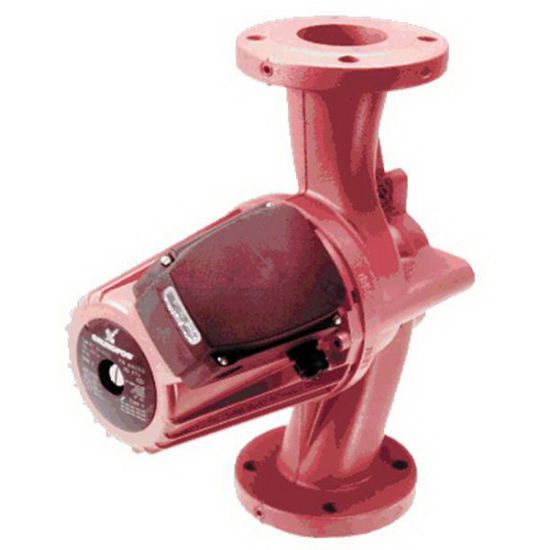

Grundfos VersaFlo UPS 50-80/2 F B Bronze 3-Speed Circulator Pump, 115V at 60 Hz, 1 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 50-80/2 F B, 12-1/2 in. Length, 6-3/4 in. Width, 11-1/2 in. Height, Bronze, AMP: 5.8/5.7/5.85A, End Connection 1: 4-Bolt Flanged, Fitting Size 1: 2 in., 20 - 150 gpm Flow Rate, Horsepower: 3/4 hp, 26.25 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, 3050/3282/3426 RPM, Specifications - UL Listed: Yes, 115V VAC at 60 Hz, 3 Number of Speeds, 600/610/630W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 11-1/2 in. Port-To-Port Length, 60mfd Capacitance

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-1/2 in.
Width	6-3/4 in.
Height	11-1/2 po
Material	Bronze
AMP	5.8/5.7/5.85A
Bearing Material	Ceramic/Carbon
Capacitance	60mfd
End Connection 1	4-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	2 in.
Horsepower	3/4 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	26.25 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	1 PH
Port-To-Port Length	11-1/2 in.
Power Rating	600/610/630W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
RPM	3050/3282/3426 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
