96402864 UPS50-160/2 230V BRZ

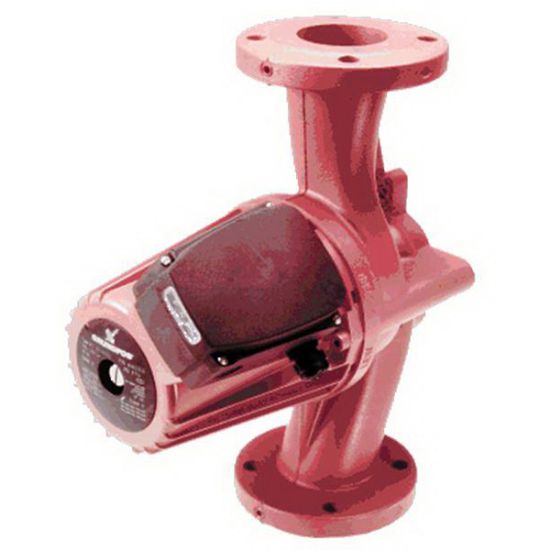

Grundfos VersaFlo UPS 50-160 B Bronze Circulator Pump, 230V at 60 Hz, 1 PH, 1-1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 50-160 B, 13-3/8 in. Length, 7-7/8 in. Width, 14 in. Height, Bronze, End Connection 1: 4-Bolt Flanged, Fitting Size 1: 2 in., 20 - 170 gpm Flow Rate, Horsepower: 1-1/2 hp, 52.5 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, Specifications - UL Listed: Yes, 230V VAC at 60 Hz, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	13-3/8 in.
Width	7-7/8 in.
Height	14 in.
Material	Bronze
Bearing Material	Ceramic/Carbon
End Connection 1	4-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	2 in.
Horsepower	1-1/2 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	52.5 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	1 PH
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	230V
