96402884 UPS50-240/2 575V 3PHASE

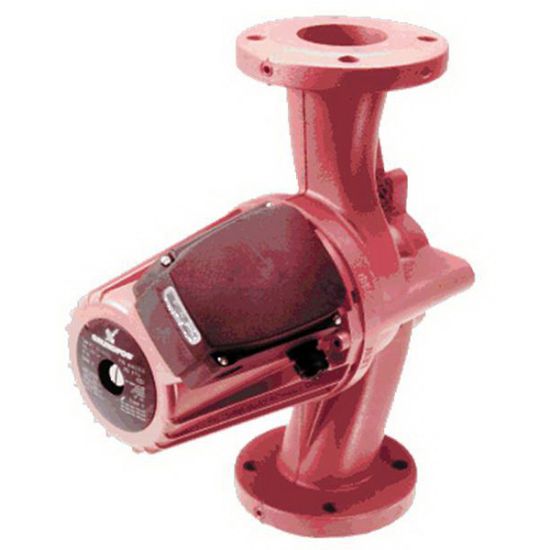

Grundfos VersaFlo UPS 50-240 F Cast Iron 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 2 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 50-240 F, 13-5/16 in. Length, 7-7/8 in. Width, 14 in. Height, Cast Iron, AMP: 1.58/2.12A, End Connection 1: 4-Bolt Flanged, Fitting Size 1: 2 in., 20 - 180 gpm Flow Rate, Horsepower: 2 hp, 78.74 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3296/3496 RPM, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 575V VAC at 60 Hz, 2 Number of Speeds, 1300/1700W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 14 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	13-5/16 in.
Width	7-7/8 in.
Height	14 po
Material	Cast Iron
AMP	1.58/2.12A
Bearing Material	Ceramic/Carbon
End Connection 1	4-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	2 in.
Horsepower	2 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	78.74 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	14 in.
Power Rating	1300/1700W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3296/3496 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	575V
