96402922 UPS80-160/2 575V 3PHASE

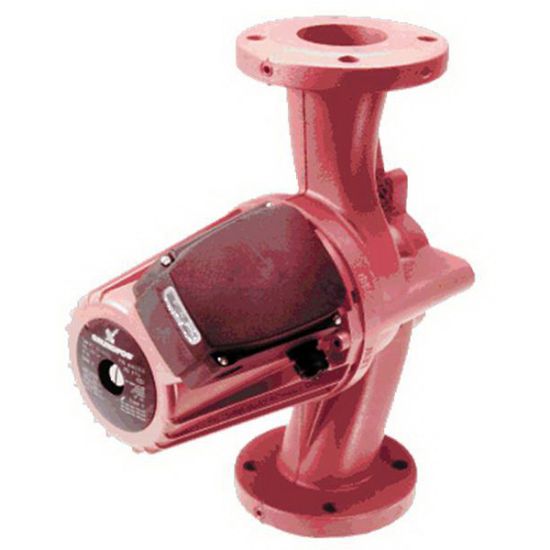

Grundfos VersaFlo UPS 80-160 F Cast Iron 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 3 hp

Manufacturer: Grundfos

$0.00

Qty:

VersaFlo Circulator Pump, 200 Series, Model: UPS 80-160 F, 14-3/4 in. Length, 7-7/8 in. Width, 19 in. Height, Cast Iron, AMP: 1.68/2.54A, End Connection 1: Flanged, Fitting Size 1: 4 in., 30 - 275 gpm Flow Rate, Horsepower: 3 hp, 52.5 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 3 PH Pump Phase, 3351/3513 RPM, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 575V VAC at 60 Hz, 2 Number of Speeds, 1550/2050W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 19 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14-3/4 in.
Width	7-7/8 in.
Height	19 po
Material	Cast Iron
AMP	1.68/2.54A
Bearing Material	Ceramic/Carbon
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	4 in.
Horsepower	3 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	52.5 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	19 in.
Power Rating	1550/2050W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	3351/3513 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	575V
