96404948 UPS40-80/4 115V

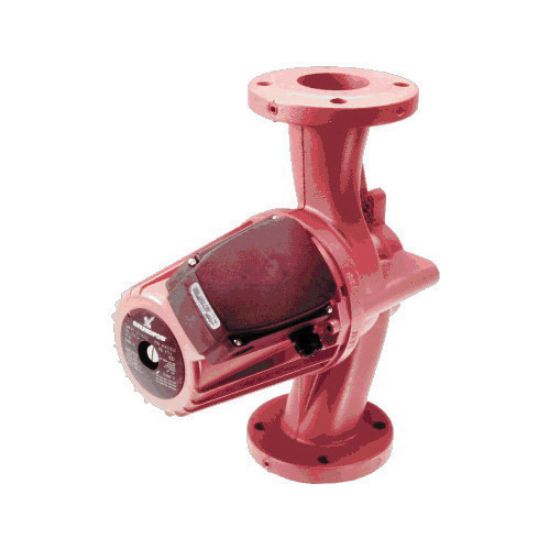

Grundfos UPS 40-80/4 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.01 in.
Height	13-1/2 po
Material	Cast Iron
AMP	4.3A (Speed 1), 5.15A (Speed 2), 5.5A (Speed 3)
Bearing Material	Tungsten Carbide
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	40mm
Fitting Size 2	40mm
Horsepower	1/2 hp
Impeller	Stainless Steel
Material Type	304 SS
Maximum Feet of Head	26.24 ft.
Maximum Temperature	32 - 248F
Number of Poles	4
Phase	1 PH
Power Rating	565W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Mounting	In-Line
RPM	1750 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
