96411613 UPS 50-160/2 230V 1PH 3SPD

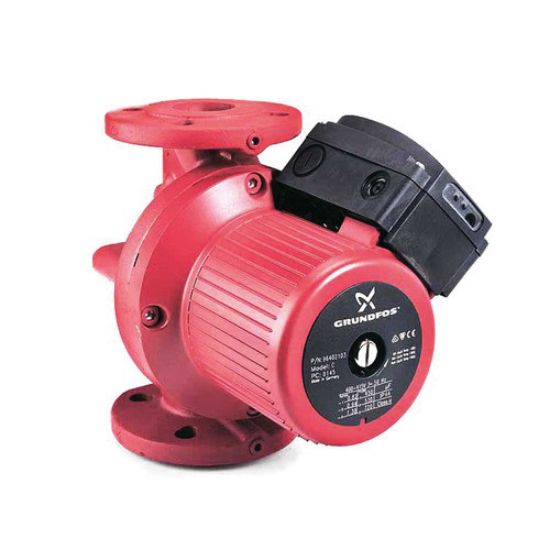

Grundfos VersaFlo UPS 50-160/2 Cast Iron Circulator Pump, 230V at 60Hz, 1 PH, 1-1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	13.78 in.
Height	14 po
Material	Cast Iron
AMP	4.85A at Speed 1, 5.2A at Speed 2, 5.8A at Speed 3
Bearing Material	Stainless Steel
End Connection 1	Non ANSI 4-Bolt Flanged
Environmental Conditions	95% RH
Fitting Size 1	2 in.
Frequency Rating	60Hz
Horsepower	1-1/2 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	160 dm
Maximum Temperature	140F Open, 248F Liquid
Phase	1 PH
Power Rating	1050W at Speed 1, 1100W at Speed 2, 1250W at Speed 3
Pressure - Maximum	145 psi
Pump Motor Type	2-Pole
RPM	3450 RPM
Shaft Material	Stainless Steel
VAC at 60 Hz	230V
