96439643 UP43-110F 115/230V

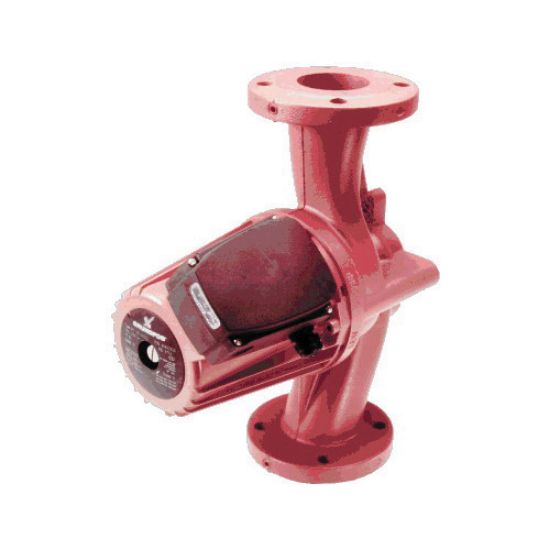

Grundfos UP 43-110 F Cast Iron 1-Speed Large Stator Up Circulating Pump, 115/230 VAC at 60Hz, 1 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

Large Stator Up Circulating Pump, UP Series, Model: UP 43-110 F, 12.19 in. Length, 8-1/2 in. Height, Cast Iron, AMP: 5/0.5/7A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., 98 gpm Flow Rate, Horsepower: 3/4 hp, Stainless Steel Impeller, 36 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 125 psi, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 115/230 VAC VAC at 60 Hz, 1 Number of Speeds, 590W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 40C Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 60mfd, Insulation Class: F, Port-to-Port Length: 8-9/16 in. Additional Specifications, Material Type: 304 SS

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12.19 in.
Height	8-1/2 po
Material	Cast Iron
AMP	5/0.5/7A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Horsepower	3/4 hp
Impeller	Stainless Steel
Material Type	304 SS
Maximum Feet of Head	36 ft.
Maximum Temperature	14 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	590W
Power Source	Hardwired
Pressure - Maximum	125 psi
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115/230 VAC
