GRU96449949

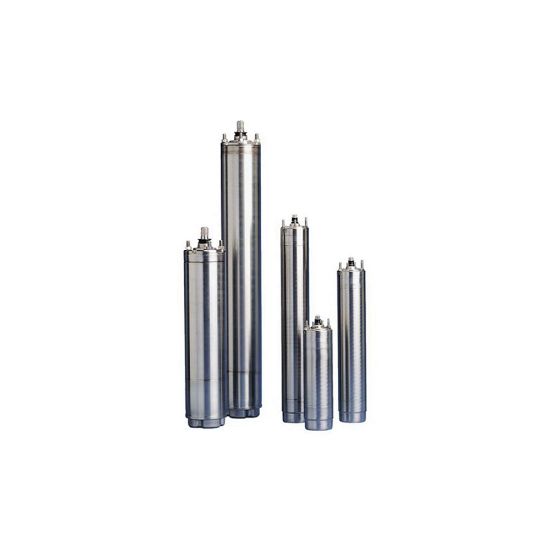

Grundfos 96449949 304 Stainless Steel CSCR 3-Wire Submersible Motor, 230V at 60Hz, 27.5A Maximum, 110A Start, 1 PH, 5 hp, 3450 RPM

Manufacturer: Grundfos

$0.00

Qty:

CSCR 3-Wire Submersible Motor, MS 4000 Series, Model: B, 60.87 in. Length, Material: 304 Stainless Steel, AMP: 27.5A Maximum, 110A Start, Flow Rate: 0.44 - 1475 gpm, Horsepower: 5 hp, Phase: 1 PH, RPM: 3450 RPM, 230V Volts, Load Capacity: 1500 lbs., 60Hz Frequency Rating, Diameter: 4 in., Pressure - Maximum: 870 psi, 0.37 - 7.5kW Watts, Temperature Rating: 140F Liquid, IP68 Enclosure

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	60.87 in.
Material	304 Stainless Steel
AMP	27.5A Maximum, 110A Start
Diameter	4 in.
Enclosure	IP68
Frequency Rating	60Hz
Horsepower	5 hp
Load Capacity	1500 lbs.
Phase	1 PH
Pressure - Maximum	870 psi
RPM	3450 RPM
Temperature Rating	140F Liquid
Volts	230V
Watts	0.37 - 7.5kW
