96633576 53-45/6F 115V/1PH CIRC PUMP

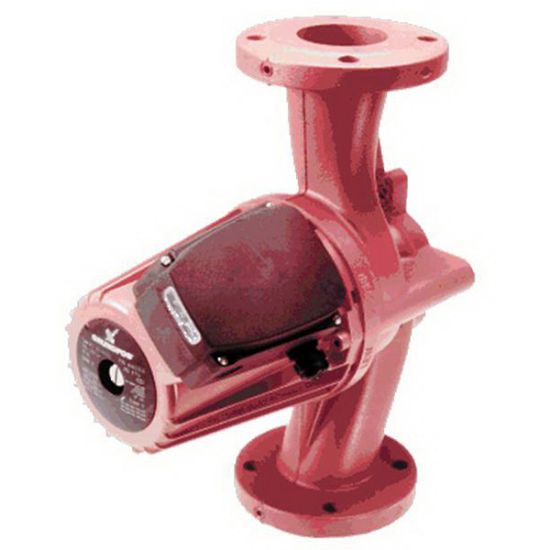

Grundfos VersaFlo UP 53-45 F Cast Iron 1-Speed Circulator Pump, 115/230V at 60 Hz, 1 PH, 1/2 hp
Manufacturer: Grundfos
$0.00
VersaFlo Circulator Pump, 200 Series, Model: UP 53-45 F, 12-13/16 in. Length, 6-1/2 in. Width, 9-7/8 in. Height, Cast Iron, AMP: 3.5/1.9A, End Connection 1: 4-Bolt Flanged, Fitting Size 1: 2, 2-1/2, 3 in., 15 - 100 gpm Flow Rate, Horsepower: 1/2 hp, 14.76 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 145 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, 3450 RPM, Specifications - ASTM: ASTM 35 B - 40 B, Specifications - UL Listed: Yes, 115/230V VAC at 60 Hz, 1 Number of Speeds, 380W Power Rating, Stainless Steel Impeller Material, Stainless Steel Shaft Material, Ceramic/Carbon Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 2 Number of Poles, 9-7/8 in. Port-To-Port Length, 30mfd Capacitance
Products specifications
products.specs.attributename products.specs.attributevalue
Length 12-13/16 in.
Width 6-1/2 in.
Height 9-7/8 po
Material Cast Iron
AMP 3.5/1.9A
Bearing Material Ceramic/Carbon
Capacitance 30mfd
End Connection 1 4-Bolt Flanged
Environmental Conditions 95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1 2, 2-1/2, 3 in.
Horsepower 1/2 hp
Impeller Material Stainless Steel
Maximum Feet of Head 14.76 ft.
Maximum Temperature 14 - 248F
Number of Poles 2
Phase 1 PH
Port-To-Port Length 9-7/8 in.
Power Rating 380W
Pressure - Maximum 145 psi
Pump Motor Type Canned Rotor
Pump Phase 1 PH
RPM 3450 RPM
Shaft Material Stainless Steel
Specifications - UL Listed Yes
VAC at 60 Hz 115/230V
