96654375 UPS53-55/57F 208V 3/4HP 3PH

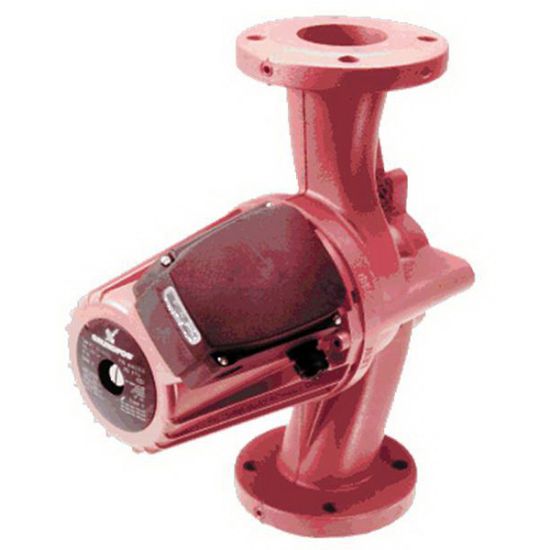

Grundfos VersaFlo UPS 53-55/57/2 F Cast Iron 3-Speed Circulator Pump, 208 - 230V at 60 Hz, 3 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-13/16 in.
Width	6-11/16 in.
Height	11-7/8 po
Material	Cast Iron
AMP	1.08/1.2/1.92A
Bearing Material	Ceramic/Carbon
End Connection 1	4-Bolt Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Fitting Size 1	2, 2-1/2, 3 in.
Horsepower	3/4 hp
Impeller Material	Stainless Steel
Maximum Feet of Head	1 - 30 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	3 PH
Port-To-Port Length	11-7/8 in.
Power Rating	400/440/610W
Pressure - Maximum	145 psi
Pump Motor Type	Canned Rotor
Pump Phase	3 PH
RPM	2872/3010/3428 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	208 - 230V
