GRU96877844

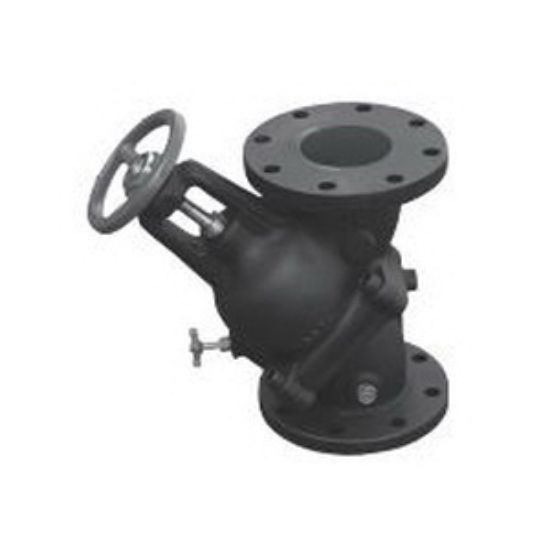

Grundfos 96877844 Class 125 Cast and Ductile Iron Combination Valve, 3 x 3 in., NPT

Manufacturer: Grundfos

$0.00

Qty:

Combination Valve, 11.65 in. Length, Material: Cast Iron, Ductile Iron, Diameter: 1/2 in., End Connection 1: NPT, End Connection 2: NPT, Ductile Iron Handle, Maximum Temperature: 150F, Pressure - Maximum: 175 psi, Pressure Class: 125#, Specifications - ANSI: ANSI 125, Specifications - ASTM: ASTM A-395, ASTM A-126 Class B, Ductile Iron, Bronze, Stainless Steel Valve Disc, Valve Operator: Hand Wheel, EPDM, Bronze Valve Seat, Valve Size: 3 x 3 in., Other Physical Dimensions: 9.61 in. Centre to Hand Wheel, Bronze, Stainless Steel Valve Stem, Valve Sleeve Material: Bronze, Pumped Liquid: Water

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.65 in.
Material	Cast Iron, Ductile Iron
Diameter	1/2 in.
End Connection 1	NPT
End Connection 2	NPT
Handle Material	Ductile Iron
Maximum Temperature	150F
Pressure - Maximum	175 psi
Pressure Class	125#
Specifications - ANSI	ANSI 125
Valve Disc Material	Ductile Iron, Bronze, Stainless Steel
Valve Operator	Hand Wheel
Valve Seat Material	EPDM, Bronze
Valve Size	3 x 3 in.
Valve Stem Material	Bronze, Stainless Steel
