C++ JP10S-SS 1 HP 115/230 S/W SS JET PUM

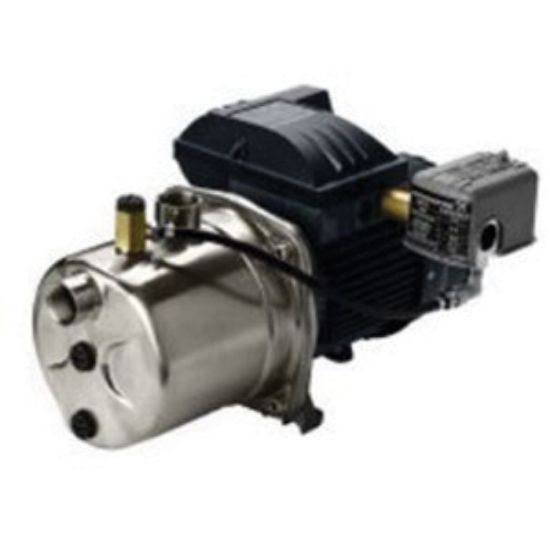

Grundfos JP10S-SS Stainless Steel 1-Stage Shallow Well Jet Pump, 115/230V at 60Hz, 1 PH, 13.8/7.1A, 1 hp, 20 gpm

Manufacturer: Grundfos

$0.00

Qty:

Shallow Well Pump, Model: JP10S-SS, 16.8 in. Length, 10.4 in. Width, 8-1/2 in. Height, AMP: 13.8/7.1A, 20 gpm Flow Rate, Horsepower: 1 hp, 25 ft. Lift Capacity, Pressure - Maximum: 116 psi Operating, 30 - 50 psi Switch, Jet Pump Application, Stainless Steel Pump Body Material, TEFC Class F Pump Motor Type, 1 PH Pump Phase, 1 Pump Stage, 115/230V Volts, 200 ft. Maximum Feet of Head, Temperature Rating: 32 - 95F Fluid, 95% RH Maximum, 14 - 104F Storage and 104F Ambient Temperature Environmental Conditions, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	16.8 in.
Width	10.4 in.
Height	8-1/2 po
AMP	13.8/7.1A
Environmental Conditions	95% RH Maximum, 14 - 104F Storage and 104F Ambient Temperature
Frequency Rating	60Hz
Horsepower	1 hp
Lift Capacity	25 ft.
Maximum Feet of Head	200 ft.
Pressure - Maximum	116 psi Operating, 30 - 50 psi Switch
Pump Body Material	Stainless Steel
Pump Motor Type	TEFC Class F
Pump Phase	1 PH
Pump Stage	1
Temperature Rating	32 - 95F Fluid
Volts	115/230V
