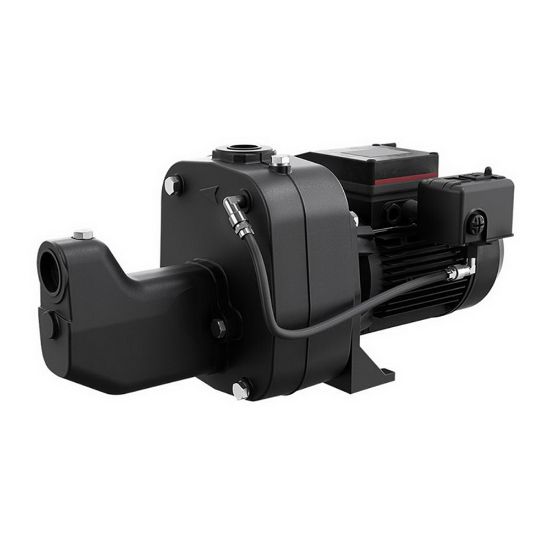

JP5-61A 1-1/2HP 230 S/W CI JET PUMP

Grundfos JP15S-CI Cast Iron 1-Stage Shallow Well Jet Pump, 220 - 230V at 60Hz, 8A, 1 PH, 1-1/2 hp, 20 gpm, 25 ft. Suction Lift

Manufacturer: Grundfos

$0.00

Qty:

Shallow Well Jet Pump, Model: JP15S-CI, 21.8 in. Length, 10.2 in. Width, 10 in. Height, Material: Cast Iron, AMP: 8A, End Connection 1: NPT, End Connection 2: NPT, Fitting Size 1: 1-1/4 in., Fitting Size 2: 1 in., Flow Rate: 20 gpm, Horsepower: 1-1/2 hp, Lift Capacity: 25 ft., Pressure - Maximum: 116 psi Operating, 30 - 50 psi Switch, TEFC Class F Pump Motor, 1 PH Pump, 1 Pump Stage, 220 - 230V Volts, 200 ft. Maximum Head, Temperature Rating: 32 - 95F Fluid, Environmental Conditions: 95% RH Maximum, 14 - 104F Storage and 104F Ambient Temperature, 60Hz Frequency Rating, Capacitor: 32mfd, 1700W Power Rating, Enclosure Rating: IP44

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	21.8 in.
Width	10.2 in.
Height	10 po
Material	Cast Iron
AMP	8A
Enclosure Rating	IP44
End Connection 1	NPT
End Connection 2	NPT
Environmental Conditions	95% RH Maximum, 14 - 104F Storage and 104F Ambient Temperature
Fitting Size 1	1-1/4 in.
Fitting Size 2	1 in.
Frequency Rating	60Hz
Horsepower	1-1/2 hp
Lift Capacity	25 ft.
Maximum Feet of Head	200 ft.
Power Rating	1700W
Pressure - Maximum	116 psi Operating, 30 - 50 psi Switch
Pump Motor Type	TEFC Class F
Pump Phase	1 PH
Pump Stage	1
Temperature Rating	32 - 95F Fluid
Volts	220 - 230V
