GRU98126802

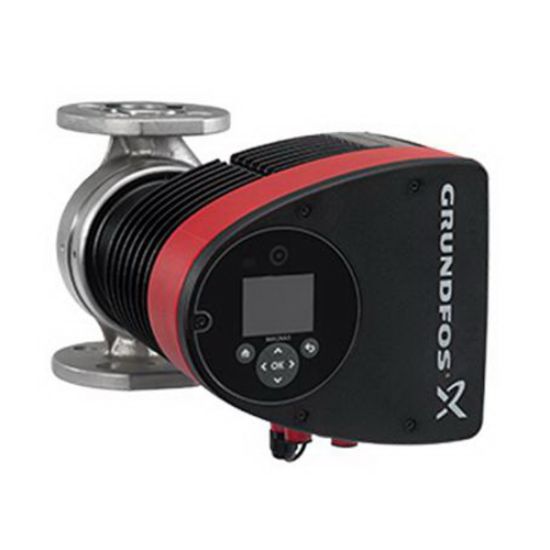

Grundfos MAGNA3 40-80 F N Stainless Steel Single Head Circulator Pump, 115V at 60 Hz, 1 PH, 1/3 hp

Manufacturer: Grundfos

$0.00

Qty:

Single Head Circulator Pump, Model: MAGNA3 40-80 F N, 14.73 in. Length, 8.74 in. Width, 8-1/2 in. Height, Stainless Steel, AMP: 0.3 - 2.45A, End Connection 1: Flanged, 81 gpm Flow Rate, Horsepower: 1/3 hp, 26.24 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 175 psi, ECM-Permanent Magnetic Pump Motor Type, 1 PH Pump Phase, Specifications - ASTM: ASTM 351 CF8, NEMA 2 Specifications - NEMA, Specifications - UL Listed: Yes, 115V VAC at 60 Hz, 16 - 276W Power Rating, Polyethersulfone (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 95% RH Maximum, 0 - 40C Ambient Temperature Environmental Conditions, 4 Number of Poles, 216mm Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14.73 in.
Width	8.74 in.
Height	8-1/2 in.
Material	Stainless Steel
AMP	0.3 - 2.45A
Bearing Material	Stainless Steel
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 0 - 40C Ambient Temperature
Horsepower	1/3 hp
Impeller Material	Polyethersulfone (30% Glass-Filled)
Maximum Feet of Head	26.24 ft.
Maximum Temperature	14 - 230F
Number of Poles	4
Phase	1 PH
Port-To-Port Length	216mm
Power Rating	16 - 276W
Pressure - Maximum	175 psi
Pump Motor Type	ECM-Permanent Magnetic
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 2
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
