GRU98126816

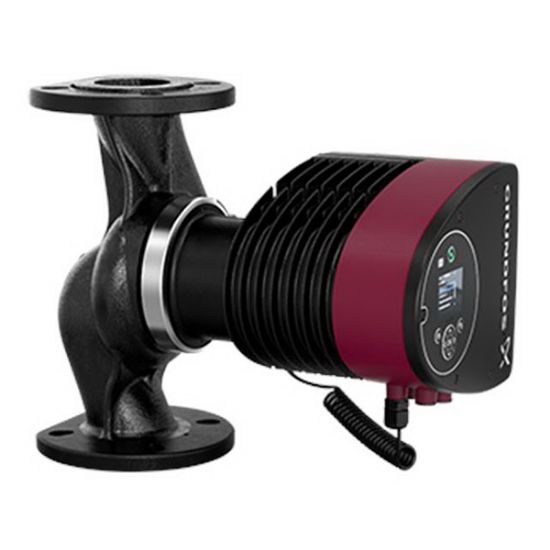

Grundfos MAGNA3 50-150 F Cast Iron Single Head Circulator Pump, 115V at 60 Hz, 1 PH, 3/4 hp

Manufacturer: Grundfos

$0.00

Qty:

Single Head Circulator Pump, Model: MAGNA3 50-150 F, 15.87 in. Length, 10 in. Width, 11.02 in. Height, Cast Iron, AMP: 0.31 - 5.54A, End Connection 1: Flanged, 38 gpm Flow Rate, Horsepower: 3/4 hp, 49.21 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 175 psi, ECM-Permanent Magnetic Pump Motor Type, 1 PH Pump Phase, Specifications - ASTM: ASTM A-48-250B, NEMA 2 Specifications - NEMA, 115V VAC at 60 Hz, 18.5 - 630W Power Rating, Polyethersulfone (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 95% RH Maximum, 0 - 40C Ambient Temperature Environmental Conditions, 4 Number of Poles, 280mm Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	15.87 in.
Width	10 in.
Height	11.02 in.
Material	Cast Iron
AMP	0.31 - 5.54A
Bearing Material	Stainless Steel
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 0 - 40C Ambient Temperature
Horsepower	3/4 hp
Impeller Material	Polyethersulfone (30% Glass-Filled)
Maximum Feet of Head	49.21 ft.
Maximum Temperature	14 - 230F
Number of Poles	4
Phase	1 PH
Port-To-Port Length	280mm
Power Rating	18.5 - 630W
Pressure - Maximum	175 psi
Pump Motor Type	ECM-Permanent Magnetic
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 2
VAC at 60 Hz	115V
