C++ 98126825 MAGNA1 32-100 STAINLESS STE

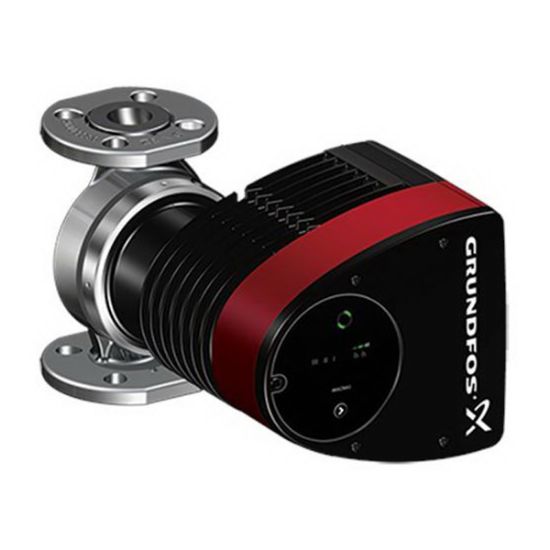

Grundfos MAGNA1 32-100 F N Stainless Steel Single Head Circulator Pump, 115/230V at 60 Hz, 1 PH, 1/6 hp

Manufacturer: Grundfos

$0.00

Qty:

Single Head Circulator Pump, Model: MAGNA1 32-100 F N, 7.91 in. Length, 8.34 in. Width, 6.61 in. Height, Stainless Steel, AMP: 0.28 - 1.61A, End Connection 1: Flanged, 50 gpm Flow Rate, Horsepower: 1/6 hp, 32.81 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 174 psi, Canned Rotor Pump Motor Type, 1 PH Pump Phase, Specifications - ASTM: ASTM 351 CF8, Specifications - UL Listed: Yes, 115/230V VAC at 60 Hz, 8.62 - 178W Power Rating, Polyethersulfone (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 95% RH Maximum, 32 - 104F Ambient Temperature Environmental Conditions, 4 Number of Poles, 6-1/2 in. Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.91 in.
Width	8.34 in.
Height	6.61 po
Material	Stainless Steel
AMP	0.28 - 1.61A
Bearing Material	Stainless Steel
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 32 - 104F Ambient Temperature
Horsepower	1/6 hp
Impeller Material	Polyethersulfone (30% Glass-Filled)
Maximum Feet of Head	32.81 ft.
Maximum Temperature	14 - 230F
Number of Poles	4
Phase	1 PH
Port-To-Port Length	6-1/2 in.
Power Rating	8.62 - 178W
Pressure - Maximum	174 psi
Pump Motor Type	Canned Rotor
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115/230V
