GRU98126860

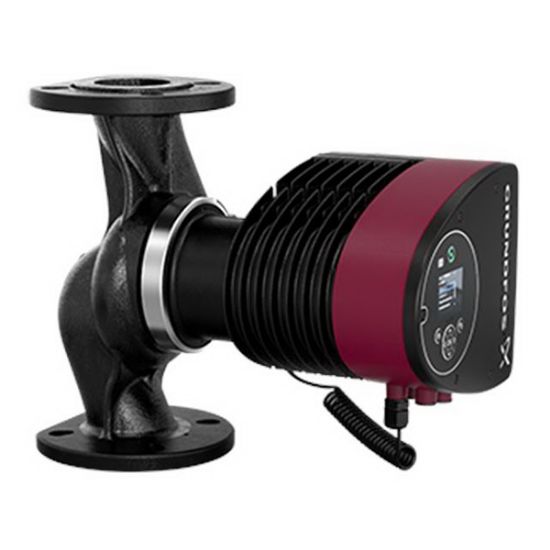

Grundfos MAGNA3 100-120 F Cast Iron Single Head Circulator Pump, 208 - 230V at 60 Hz, 1 PH, 2 hp

Manufacturer: Grundfos

$0.00

Qty:

Single Head Circulator Pump, Model: MAGNA3 100-120 F, 17.71 in. Length, 14.02 in. Width, 17.72 in. Height, Cast Iron, AMP: 0.32 - 6.97A, End Connection 1: Flanged, Horsepower: 2 hp, 39.37 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 175 psi, ECM-Permanent Magnetic Pump Motor Type, 1 PH Pump Phase, Specifications - ASTM: ASTM A-48-250B, NEMA 2 Specifications - NEMA, 208 - 230V VAC at 60 Hz, 31 - 1576W Power Rating, Polyethersulfone (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 95% RH Maximum, 0 - 40C Ambient Temperature Environmental Conditions, 4 Number of Poles, 450mm Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	17.71 in.
Width	14.02 in.
Height	17.72 po
Material	Cast Iron
AMP	0.32 - 6.97A
Bearing Material	Stainless Steel
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 0 - 40C Ambient Temperature
Horsepower	2 hp
Impeller Material	Polyethersulfone (30% Glass-Filled)
Maximum Feet of Head	39.37 ft.
Maximum Temperature	14 - 230F
Number of Poles	4
Phase	1 PH
Port-To-Port Length	450mm
Power Rating	31 - 1576W
Pressure - Maximum	175 psi
Pump Motor Type	ECM-Permanent Magnetic
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 2
VAC at 60 Hz	208 - 230V
