GRU98126863

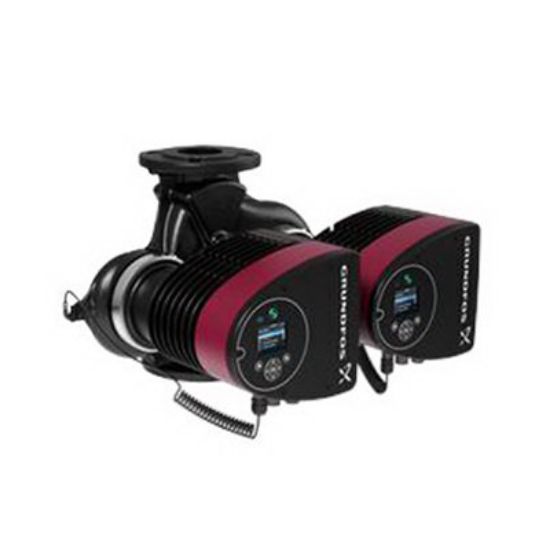

Grundfos MAGNA3 D 65-150 F Cast Iron Twin Head Circulator Pump, 208 - 230V at 60 Hz, 1 PH, 1-1/2 hp

Manufacturer: Grundfos

$0.00

Qty:

Twin Head Circulator Pump, Model: MAGNA3 D 65-150 F, 15.315 in. Length, 20.55 in. Width, 13.38 in. Height, Cast Iron, AMP: 0.3 - 5.68A, End Connection 1: Flanged, 480 gpm Flow Rate, Horsepower: 1-1/2 hp, 49.21 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 175 psi, ECM-Permanent Magnetic Pump Motor Type, 1 PH Pump Phase, Specifications - ASTM: ASTM A-48-250B, NEMA 2 Specifications - NEMA, 208 - 230V VAC at 60 Hz, 29 - 1301W Power Rating, Polyethersulfone (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 95% RH Maximum, 0 - 40C Ambient Temperature Environmental Conditions, 4 Number of Poles, 340mm Port-To-Port Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	15.315 in.
Width	20.55 in.
Height	13.38 po
Material	Cast Iron
AMP	0.3 - 5.68A
Bearing Material	Stainless Steel
End Connection 1	Flanged
Environmental Conditions	95% RH Maximum, 0 - 40C Ambient Temperature
Horsepower	1-1/2 hp
Impeller Material	Polyethersulfone (30% Glass-Filled)
Maximum Feet of Head	49.21 ft.
Maximum Temperature	14 - 230F
Number of Poles	4
Phase	1 PH
Port-To-Port Length	340mm
Power Rating	29 - 1301W
Pressure - Maximum	175 psi
Pump Motor Type	ECM-Permanent Magnetic
Pump Phase	1 PH
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 2
VAC at 60 Hz	208 - 230V
