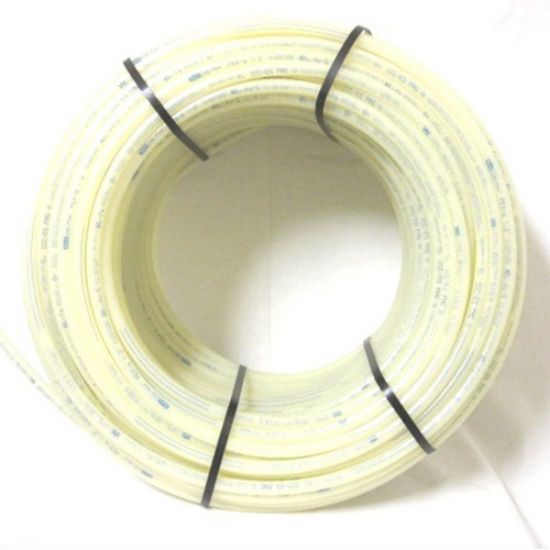

20122 3/4"X100' BLUE STRIPE PEX TUBE

20122 3/4" X 100FT HEATLINK BLUE PEX TUBING

$0.00

Qty:

PureLink Plus Non-Barrier UV Stabilized Tube, 100 ft. Length, Crosslinked Polyethylene-A, Colour/Finish Name: Natural with Blue Printing, 3/4 in. Pipe/Tubing Size, Specifications - ASTM: ASTM F-876, ASTM F-877, Coil Package Type, 3 Pack Package Quantity, 7/8 in. Diameter - Outside 1, 18.9 in. Minimum Coil Diameter - Inside 1, 180F at 100 psi Maximum - Temperature, CSA B137.5 Specifications - CSA Certified, Specifications - NSF: NSF 14, 61 and 372, Specifications - AWWA: AWWA C-904, 4-1/2 in. Minimum Bend Radius, 0.097 in. Minimum Wall Thickness, 0.01832 USG/ft Fluid Volume

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	100 ft.
Material	Crosslinked Polyethylene-A
Bend Radius	4-1/2 in. Minimum
Colour/Finish Name	Natural with Blue Printing
Diameter - Inside 1	18.9 in. Minimum Coil
Diameter - Outside 1	7/8 in.
Fluid Volume	0.01832 USG/ft
Maximum Temperature	180F at 100 psi
Package Quantity	3 Pack
Package Type	Coil
Specifications - AWWA	AWWA C-904
Specifications - CSA Certified	CSA B137.5
Specifications - NSF	NSF 14, 61 and 372
Specifications - NSF Certified	Yes
Wall Thickness	0.097 in. Minimum
