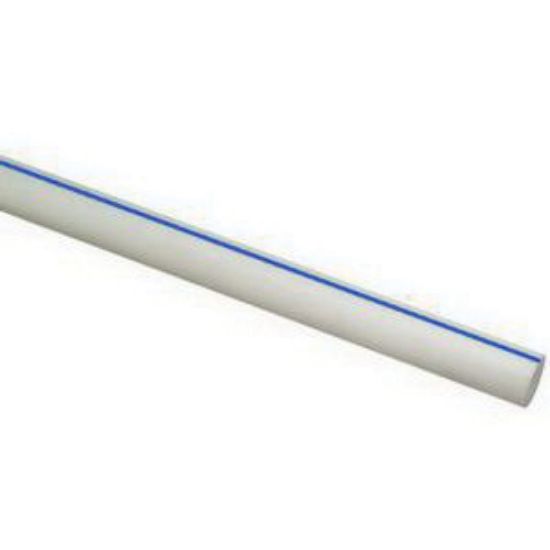

20145 1-1/2"X100 PURELINK PEX-A PIPE

Heatlink PureLink Plus 20145 Natural with Blue Stripe Crosslinked Polyethylene-A Non-Barrier UV Stabilized PEX Tubing, 1-1/2 in. x 100 ft.
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 100 ft.
Material Crosslinked Polyethylene-A
Bend Radius 9 in. Minimum
Colour/Finish Name Natural with Blue Stripe
Diameter - Inside 1 31-1/2 in. Minimum Coil
Diameter - Outside 1 1-5/8 in.
Fluid Volume 0.06324 USG/ft
Maximum Temperature 180F
Package Quantity 100 ft. Pack
Package Type Coil
Pressure - Maximum 100 psi
Specifications - AWWA AWWA C-904
Specifications - CSA Certified CSA B137.5
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14, 61 and 372
Specifications - NSF Certified Yes
Thermal Conductivity 2.635 btu/hr/sq-ft
Wall Thickness 0.181 in. Minimum
