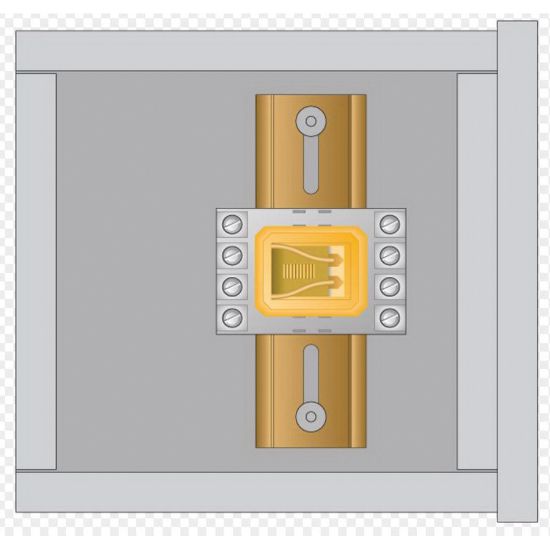

45112 24VAC DP/DT PMP RELAY BOX

Heatlink 45112 Pump Relay with Enclosure, 24 VAC, 10A, DPDT
Manufacturer: Heatlink
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 6-5/8 in.
Width 4-1/16 in.
Height 6-1/4 in.
AMP 10A, 720 mA Inrush
Configuration DPDT
Contact Rating 10A Resistive, 7.5A Inductive at 120 VAC, 1/4 hp and 7.5A Resistive, 5A Inductive at 240 VAC, 1/3 hp
Temperature Rating -30 to 70C Operating, 85C Coil Rise, 65C Contact Rise
VA Rating 2.5 at 60Hz, 3 at 50 Hz
Volts 24 VAC
