ML6161B2024/U FL SPDT ACT 35LB NON-SPR

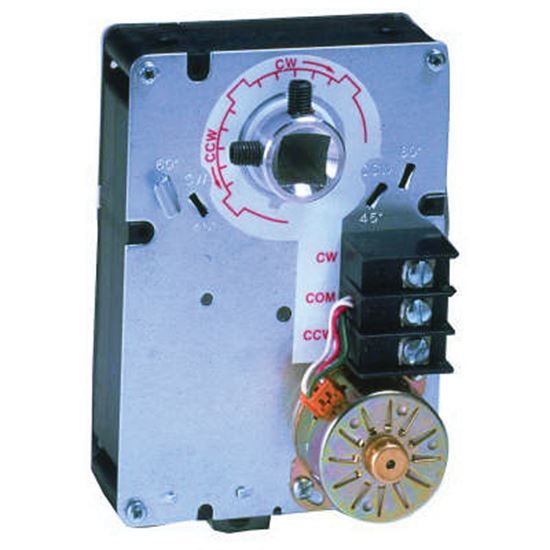

Honeywell ML6161B2024/U Plenum Rated Plastic Non-Spring Return Actuator, 24 VAC, Floating, On/Off SPDT

Manufacturer: Honeywell Commercial

$0.00

Qty:

Non-Spring Return Actuator, 3.39 in. Width, 5.55 in. Height, Material: Steel Plate, Plenum Rated Plastic, 24 VAC Volts, 1.8 Driving VA Rating, 35 in-lbs Torque Rating, Timing: 90 sec. at 60Hz Driving, Number of Auxiliary Switch: 0 (Internal), 50/60Hz Frequency Rating, Depth: 2.52 in., Control Signal: Floating, On/Off SPDT, Electrical Connection: Screw Terminal, Shaft: 3/8 - 1/2 in. Square or Round, Humidity Range: 5 - 95% RH Non-Condensing, Temperature Rating: 20 - 125F, Noise Rating: 45 dBA at 1m, NEMA 1 Enclosure
