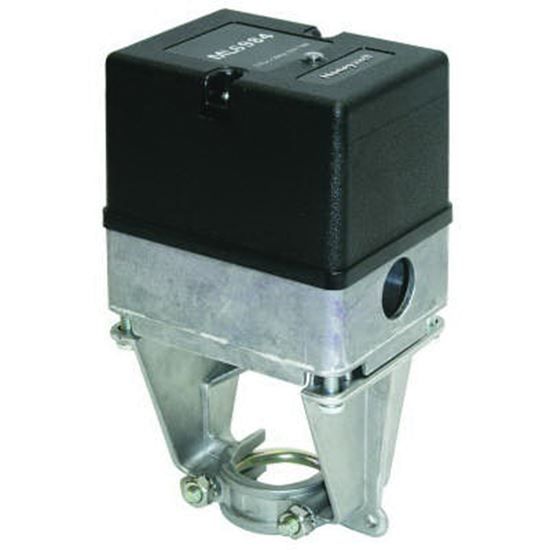

ML6984A4000 D.COUPLED VLV ACTUATOR

Honeywell ML6984A4000/U Non-Spring Return Direct-Coupled Valve Actuator, 28 VDC, 24 VAC, 6 VA (Driving), 12 VA (Holding)

Manufacturer: Honeywell Commercial

$0.00

Qty:

Non-Spring Return Direct-Coupled Valve Actuator, 4 in. Width, 6-13/16 in. Height, Depth: 3-3/16 in., 28 VDC at 50/60Hz, 24 VAC at 50/60Hz Volts, 6 VA (Driving), 12 VA (Holding) Power Consumption, -40 to 150F Storage Temperature, 32 - 130F Ambient Temperature Rating, SPDT Configuration, 2 Number of Positions, 63 at 3/4 in. Stroke (60Hz) Run Time, 50/60Hz Frequency Rating
