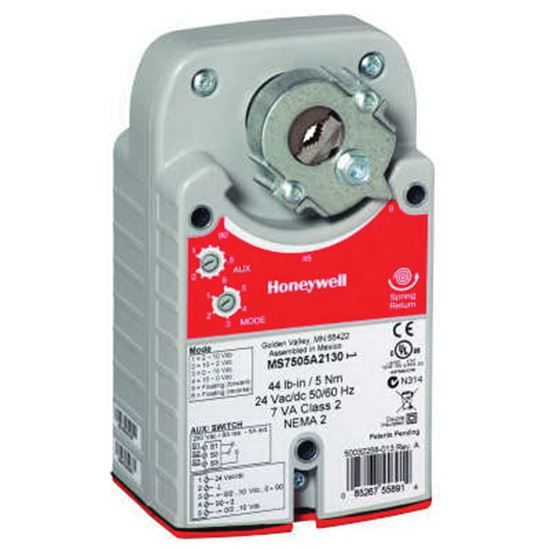

MS7505A2030 ACTUA. 44LB/IN 24V MODUL

Spring Return Low Voltage Direct Coupled Damper Valve Actuator, 3-55/84 in. Width, 6-81/54 in. Height, Material: Plastic Housing, 24 VAC/DC Volts, AMP: 4 - 20 mA with 500 Ohm Resistor, 6/3 Driving VA Rating, 44 in-lbs, 105 in-lbs Maximum Stall Torque Rating, Timing: 90 sec. at 60Hz Driving, 25 sec. Spring Return, Number of Auxiliary Switch: 0 (Internal), 50/60Hz Frequency Rating, Depth: 3-5/32 in., Control Signal: Floating, On/Off SPDT, (0) 2 - 10 VDC Feedback, Electrical Connection: Enclosed Screw Terminal Strip (22 - 14 awg), Shaft: 3/8 - 5/8 in. Round or 1/4 - 1/2 in. Square, Humidity Range: 5 - 95% RH Non-Condensing, Temperature Rating: -40 to 149F, Noise Rating: 40 dBA at 1m (Driving), 20 dBA at 1m (Holding) (No Audible Noise), NEMA 2, IP54 Enclosure
