MS8105A1030 ACTUA. 44LB/IN 24V 2 POS S/R

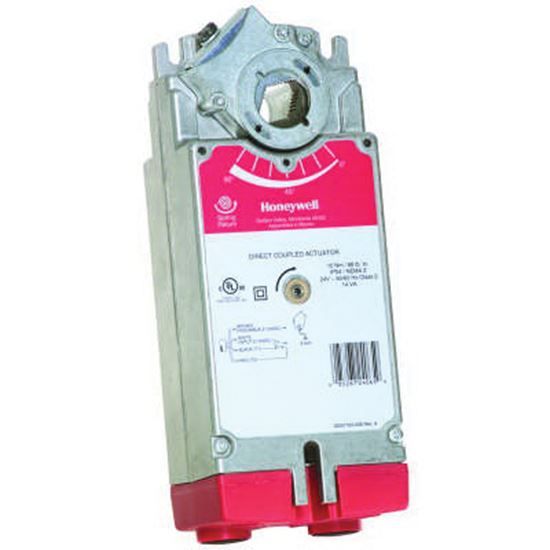

Honeywell MS8105A1030/U Plastic Housing 2-Position Spring Return Direct Coupled Damper Valve Actuator, 24 VAC/DC, SPST
Manufacturer: Honeywell Commercial
$0.00
2-Position Spring Return Direct Coupled Damper Valve Actuator, 3-55/84 in. Width, 6-81/54 in. Height, Material: Plastic Housing, 24 VAC/DC Volts, 6/3 Driving VA Rating, 44 in-lbs, 105 in-lbs Maximum Stall Torque Rating, Timing: 45 sec. at 60Hz Driving, 25 sec. Spring Return, Number of Auxiliary Switch: 0 (Internal), 50/60Hz Frequency Rating, Depth: 3-5/32 in., Control Signal: SPST, Electrical Connection: Enclosed Screw Terminal Strip (22 - 14 awg), Shaft: 3/8 - 5/8 in. Round or 1/4 - 1/2 in. Square, Humidity Range: 5 - 95% RH Non-Condensing, Temperature Rating: -22 to 149F, Noise Rating: 50 dBA at 1m (Driving), 20 dBA at 1m (Holding) (No Audible Noise), NEMA 2, IP54 Enclosure
