T775B2024/U STDR NEMA 4X ELEC TEMP CONT

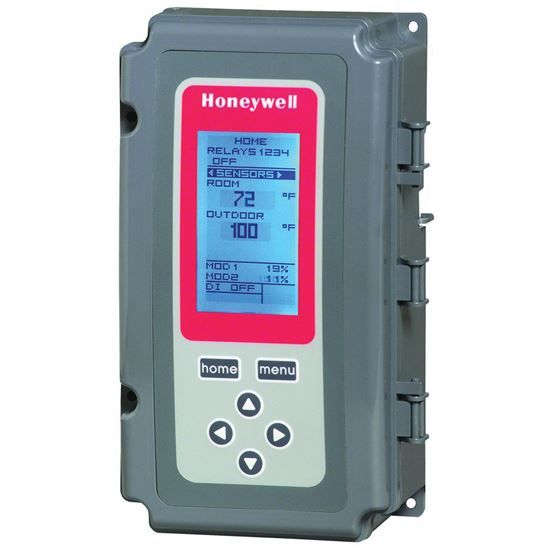

Honeywell T775B2024/U Grey On/Off or Analog Electronic Remote Temperature Controller, -40 to 248F, 24 VAC, 120/240 VAC
On/Off or Analog Electronic Remote Temperature Controller, T775 Series, 4-13/32 in. Width, 8-5/32 in. Height, Colour/Finish Name: Grey, Switch Configuration: (4) SPDT, Depth: 2-15/16 in., Bulb Size: 2 in. Length x 1/4 in. Diameter, 24 VAC, 120/240 VAC Volts, Control Range: -40 to 248F, Contact Rating: 10A at 24 VAC Resistive, 1/2 hp at 120VAC, 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty, 1/2 hp at 240 VAC, 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty, Digital Display, NEMA 4X Enclosure, 50/60Hz Frequency Rating, Switch Action: Open/Close on Rise, Number of Relay Inputs: 2, Number of Relay Outputs: 4, -40 to 125F at 50Hz, -40 to 140F at 60Hz Ambient Temperature, Maximum Distance to Sensor: Up to 1000 ft., Plus/Minus 1F at 77F Accuracy, 1097 Ohm PTC at 77F Sensor Element
